There are a myriad of ways SQL Server can be setup and for this post, we took whatever shortcut we could find. Our goal was to get this running and worry about doing it “right” later. We found ourselves on a fairly steep learning curve without a lot of examples to work off of. Consider this more of a “proof of concept” post than the definitive “how to”.

As mentioned above there are lot of different approaches to this problem. In our minds, we wanted to see if we could couple our library at the server side and access results via Reporting Services and Report Builder. We believed that the computations would be more efficient to be handled at the server while the result could take advantage of the graphing packages in Report Services.

Our approach was to build a standalone system to develop and test this work on. We choose a standard PC platform running Windows 7. The first task at hand was to decide which version of Microsoft SQL Server to work with. We chose SQL Server 2008R2 full version as we needed the Report Services support. Microsoft supplies a six month trial version that has all services available which was perfect for our project. We installed the full version with support for the Management Studio, Report Services, and Analysis services. In addition, we downloaded Microsoft’s AdventureWorks sample databases for our testing environment.

We got this all running and ran some sample scripts to make sure we had everything running correctly before moving on. Since we were going to be developing code we installed Visual Studio 2010 next and made sure we included the necessary development templates for the SQL Server environment.

After installing CenterSpace’s NMath 5.0 library, we were ready to write some code.

We will start by creating a new project in Visual Studio called NMathSQL.

We then asked to pick a server and identify the database we will be using.

In the next screen we will want to enable SQL/CLR debugging.

At this point we need to start running SQL scripts as part of the overall setup. We could exit VS and perform these tasks in the Management Studio, but VS can do the job. By selecting from the VS menu bar Data>Transact-SQL Editor>New Query Connection, we get a new window to enter scripts to be run on our database.

We found it easier to copy and paste our scripts into this windows as we needed to run SQL statements.

Our first task at hand is to load the assembly NMath.dll into the database we have selected to work in. It is at this point we hit our first real obstacle. It turns out that in our shipping NMath.dll we are using some instructions to automatically load x86 or x64. These are illegal in the SQL CLR. We were forced to remove these instructions and build an entirely separate version of NMath.dll for SQL Server. Stepping back and looking at the big picture, we decided that this was an opportunity to also include some of the “glue” code we knew we wanted to write.

We had been looking at writing some User Defined Types (UDT) and User Defined Aggregate (UDA) functions to handle the calls into our library. It seemed to make sense to extend our libraries type definitions to be T-SQL types. The result of this approach would enable T-SQL to use NMath types such as DoubleVector and DoubleMatrix. We needed to have some way to load our new data types so we built UDAs LoadDoubleVector, LoadDoubleMatrixByRow, and LoadDoubleMatrixByColumn. After building our new, custom NMath.dll, we can then run a script to load our assembly into the database.

Before we could do this, though, we discovered that we needed some basic assemblies that SQL server had left out of their CLR. The following SQL script loads those assemblies.

We are now ready to run the following SQL script to load NMath for SQL.

The next step is to add the reference to our project. From the main toolbar launch the Solution Explorer and right click on Reference then select Add Reference. Add the new assemblies we have loaded so far.

We will now have to tell SQL about the new types and functions we have added. We will start by adding the new UDTs DoubleVector and DoubleMatrix.

Now that SQL knows about our new types we can add the UDA functions with the following SQL commands.

At this point we are ready to test our library. We have chosen a problem that represents the work expected to be perform. We will create our sample datapoint tables rather than use tables from the AdventureWorks database. We will then load the data from the tables into DoubleVectors and call our library using a User Defined Function(UDF). Our UDF will be a call to library to find the function values for a curve that fits our datapoints. From our function solution we will create a table with datapoints that represent our curve function to compare against our original datapoints.

We will start by creating the UDF call to our library. From the Solution Explorer, we will add a UDF template called NMathFunction.cs.

Here is the C# code for this function call:

using System;
using System.Data;
using System.Data.SqlClient;
using System.Data.SqlTypes;
using Microsoft.SqlServer.Server;
using CenterSpace.NMath.Core;
using CenterSpace.NMath.Analysis;


public partial class UserDefinedFunctions
{
    [Microsoft.SqlServer.Server.SqlFunction]
    public static DoubleVector NMathFunction(DoubleVector xValues, DoubleVector yValues, DoubleVector start)
    {
        NMathFunctions.GeneralizedDoubleUnaryFunction f = AnalysisFunctions.FourParameterLogistic;
        OneVariableFunctionFitter fitter = new OneVariableFunctionFitter(f);
        return new DoubleVector(fitter.Fit(xValues, yValues, start));
    }
}

We can now tell VS to build the assembly NmathSQL.dll and use SQL to load the assembly to our database.

In order for our UDF NmathFunction to be recognized we need to run a SQL create function command. Note that this command must be the only command in the script.

We have now loaded our NMath function call in the database that can be called by scripts. We are ready to write a script to solve the problem we described above.

We will start by using the same data from the example we did with our excel post.

We can now build a script that uses the functionality we have built in with our library to find the solution.

-------------------------------------------------------
Declare @xv DoubleVector
Declare @yv DoubleVector

select @xv = dbo.LoadDoubleVector(xcol) from xvalues
select @yv = dbo.LoadDoubleVector(ycol) from yvalues

Declare @sPar DoubleVector
Declare @solution DoubleVector

set @sPar = '[ 0.1 0.1 0.1 0.1]'

select @solution = dbo.NMathFunction(@xv, @yv, @sPar)

select @solution.ToString()

declare @newxval float
declare @newyval float
declare @inc float
declare @a float
declare @b float
declare @c float
declare @d float

set @a = dbo.DVItem(@solution, 0)
set @b = dbo.DVItem(@solution, 1)
set @c = dbo.DVItem(@solution, 2)
set @d = dbo.DVItem(@solution, 3)

create table SolutionTBL (newxval float, newyval float)
	set @newxval = 0

	while @newxval < 35.10
	begin

	    set @newyval = @d+((@a-@d)/(1+POWER((@newxval/@c), @b)))

	    insert into SolutionTBL values(@newxval, @newyval)

	  set @newxval = (@newxval + 0.33)
	end
	select * from SolutionTBL
	go
---------------------------------------------------------------------

Here is the output from this script

At this point we can pull data from tables, call our Math libraries, and put the solution in a table to be displayed. In production, this last script would be a stored procedure that would be run from the Management Studio. All of this work would reside on the SQL Server.

We can now move on to the Reporting Services to see how this solution could be displayed.

After launching Report Builder and establishing connection to the database. The data is accessed by setting up a dataset with a query into the table for the necessary data.

From there it is merely Report Builder to build the necessary graphs. Unfortunately, the chart wizard doesn't include scatterplots. It is best to select a chart type of Line and then run through the wizard. After your chart is set up you can change its properties to scatterplot.

We can include our solution in the same report and generate a smooth line as we did in excel. The Report Builder is a very powerful tool which we are still learning.

Our results are equivilent to our previous excel post and demonstrate that the approach on the SQL Server is as accurate.

In conclusion, we have demonstrated that we can call the CenterSpace NMath libraries from SQL Server and display the results using Report Services powerful charting capabilities. We plan to work on more examples and compare how we might improve on what Analysis Services can produce. We certainly will entertain feedback on useful approaches that should be examined. As a reminder this interface is not possible with our current release of NMath 5.0 and require a "special" version of our assembly. Depending on customer interest and feedback we may or may not decide to develop a product for this interface.

The post Accessing .Net Libraries in SQL Server appeared first on CenterSpace.

Curve fitting is one of the most practical applications of mathematics as we are often asked to explain or make predictions based on a collection of data points. For example, if we collect a series of changing data values over time, we look to explain the relationship that time effects the generated values or in mathematical terms y=f(x). Here we are using x to represent time values and f(x) to represent the relationship or function that generates the resulting values or y. So if we can find a function f(x) that represents a good fit of the data we should be able to predict the result at any moment in time.

With this in mind, let us get started with some data points (x, y) that we have collected. I have entered the following values in an Excel spreadsheet.

We can now use Excel’s charting function to create the following XY scatterplot with our data:

At this point, we can add an Excel trendline to get the best fit it can provide. By right clicking on a data value in our chart we will get the option to add a trendline. Choose a 2nd order polynomial and these options.

Name the trendline “2nd Order Polynomial” and check “Display equation on chart” and “Display R-squared value on chart”.

Excel calculates and plots the line while returning the equation and the R2 value. If our R2 equals 1 we would have found a perfect fit. For a second order polynomial Excel returned a value of 0.8944 which means that roughly 10.6 percent (1-.894) are not on this line.

If we continue increasing our polynomial orders up to the maximum of six we can achieve the best R2 value of 0.9792, but look at the curve we have fitted to these points.

A better fit might be an exponential function so let us try Excel’s trendline option using exponentials.

Clearly the results are visually a better fit but the R2 value tells us that over 15% of the data points are not on this line. This pretty much represents the best we can do with Excel’s trendline functions for our data.

Looking to CenterSpace’s NMath and NStat libraries to give us more robust analysis, we can utilize more powerful curve fitting tools quickly and with little effort.

Using the linkage provided by ExcelDNA that we examined in our previous posts, we can create the following C# code for our ExcelDNA text file.

 fitter = new  OneVariableFunctionFitter
( AnalysisFunctions.FourParameterLogistic );
  DoubleVector solution = fitter.Fit(TempVx, TempVy, TempVs);
  return solution.ToArray();
 }

 [ExcelFunction(Description="Four parameterized R2")]
 public static double NOneVarFunctFitFourR2(double[] xValues, double[] yValues, double[] start)
 {
  DoubleVector TempVx = new DoubleVector(xValues);
  DoubleVector TempVy = new DoubleVector(yValues);
  DoubleVector TempVs = new DoubleVector(start);
  OneVariableFunctionFitter
 fitter = new  OneVariableFunctionFitter
( AnalysisFunctions.FourParameterLogistic );
  DoubleVector solution = fitter.Fit(TempVx, TempVy, TempVs);
  GoodnessOfFit gof = new GoodnessOfFit(fitter, TempVx, TempVy, solution);
  return gof.RSquared;
 }
}
]]>

As you can see by the code, I have chosen to use NMath’s OneVariableFunctionFitter with the FourParameterLogistic predefined generalized function.

From CenterSpace’s documentation, we get the above equation and need to solve for the model parameters a, b, c, d .

The OneVariableFunction call will require us to provide a starting guess along with the ranges containing the xValues and yValues. The following screen shows us making the function call from Excel with the necessary parameters.

After computing these values, we can call for the R2 value and generate some points to be plotted.

Note that I choose to hide the rfows from r17 to r107 for display purposes. You will need to have them unhid for the chart to look right. As you can see we returned the best R2 value so far at 0.9923.

In the next screen, we will have added the series to our chart and drawn a line through our calculated points.

This example illustrates the ease that Excel can use the power of NMath curve fitting routines to compute accurate fits to a collection of data.

Mike Magee

The post Advanced Curve Fitting using Excel and NMath appeared first on CenterSpace.

In researching the MKL documentation we found that this was in fact not a problem from MKL’s perspective. MKL uses the L1-norm, or Manhattan distance from 0,  as a metric to compute the absolute value of a complex number. This simply means that it adds together the absolute values of the real and imaginary components:

We had expected the absolute value to be computed via the L2-norm, or Euclidean distance from zero, which is referred to in places as the magnitude metric. Interestingly, MKL uses the L1-norm because that is the norm defined by the underlying BLAS standard, and apparently the original designers of BLAS choose that norm for computational efficiency. This means that all BLAS-based linear algebra packages compute the norm of a complex vector in this way – and it’s probably not what most people expect.

This was a tricky bug to find for two reasons. First, substituting one norm for the other did not elicit incorrect behavior often because the real component generally dominates the magnitude. Second, the actual calculation of the absolute value of a complex number (rather than the maximum absolute value of a complex vector) has always been calculated using the L2-norm.

Now that we found the problem, we faced the unenviable task of trying to make our API consistent while interfacing with MKL and how it deals with finding the maximum absolute value element in a vector of complex numbers.  We started by suffixing all complex versions of min and max abs methods that use MKL and therefore use the L1-norm to compute the absolute value of complex numbers with a ‘1’:

public static int MaxAbs1Index( FloatComplexVector v )
public static int MaxAbs1Value( FloatComplexVector v )
public static int MinAbs1Index( FloatComplexVector v )
public static int MinAbs1Value( FloatComplexVector v )
public static int MaxAbs1Index( DoubleComplexVector v )
public static int MaxAbs1Value( DoubleComplexVector v )
public static int MinAbs1Index( DoubleComplexVector v )
public static int MinAbs1Value( DoubleComplexVector v )

And we have subsequently written new methods that compute the maximum and minimum absolute values of a complex vector according to the L2-norm, or Euclidean distance, of its elements.  Users should be aware that these methods do not use MKL:

public static int MaxAbsIndex( FloatComplexVector v )
public static int MaxAbsValue( FloatComplexVector v )
public static int MinAbsIndex( FloatComplexVector v )
public static int MinAbsValue( FloatComplexVector v )
public static int MaxAbsIndex( DoubleComplexVector v )
public static int MaxAbsValue( DoubleComplexVector v )
public static int MinAbsIndex( DoubleComplexVector v )
public static int MinAbsValue( DoubleComplexVector v )

We hope the change is intuitive and useful.

Darren

The post Absolute value of complex numbers appeared first on CenterSpace.

The outcome of these blog articles should illustrate that Excel can become a powerful tool to quickly access a comprehensive .NET library such as CenterSpace’s NMath without needing a large supporting programming environment. This is all made possible by Govert van Drimmelen’s freeware tool ExcelDNA. ExcelDNA can interpret VB, C#, and F# instructions stored in a text file as Excel is loaded eliminating the need for a separate compiler. ExcelDNA does require the text file to have the extension .DNA. I recommend using an editor like NotePad++ to edit this file. In our last blog post, we named our file NMathExcel.dna to hold our VB code. Below, I have provided C# code that performs the same functions as the VB code in our previous post. This code below provides examples on how to use several basic routines in NMath.

In reviewing the differences between the VB and C# versions, the first order of business was to add the language specification to “CS” for C# so that ExcelDNA knows to switch from the default language of VB. Aside from the obvious differences between the two languages, we have added a reference to our NMathShared assembly and an explicit reference to using ExcelDNA.Integration. In general, the C# code is slightly simpler than VB and enables very simple code to call the library. In our C# sample code function for creating a DoubleMatrix with a random generation, we used the library’s built in conversion function ToArray() to marshal the data into an array format for Excel. Using NMath’s built-in array handling capabilities we can simply copy data in and out in the proper formats. This illustrates the ease by which we can utilize the NMath math libraries and Excel.

To further demonstrate this capability, we can add the following code to our NMathExcel.dna text file that calls the matrix transpose function in NMath. We will show how to create array data in Excel, pass it to the library in the proper format, and then return a result for display.

   public static double[,] NDoubleMatrixTranspose(double[,] InputAr)
   {
      DoubleMatrix TempAr = new DoubleMatrix(InputAr);
     TempAr = TempAr.Transpose();
      return TempAr.ToArray();
   }

Make sure you close Excel and reopen it after saving your code changes to the .DNA file so that ExcelDNA has the opportunity to incorporate the new code.

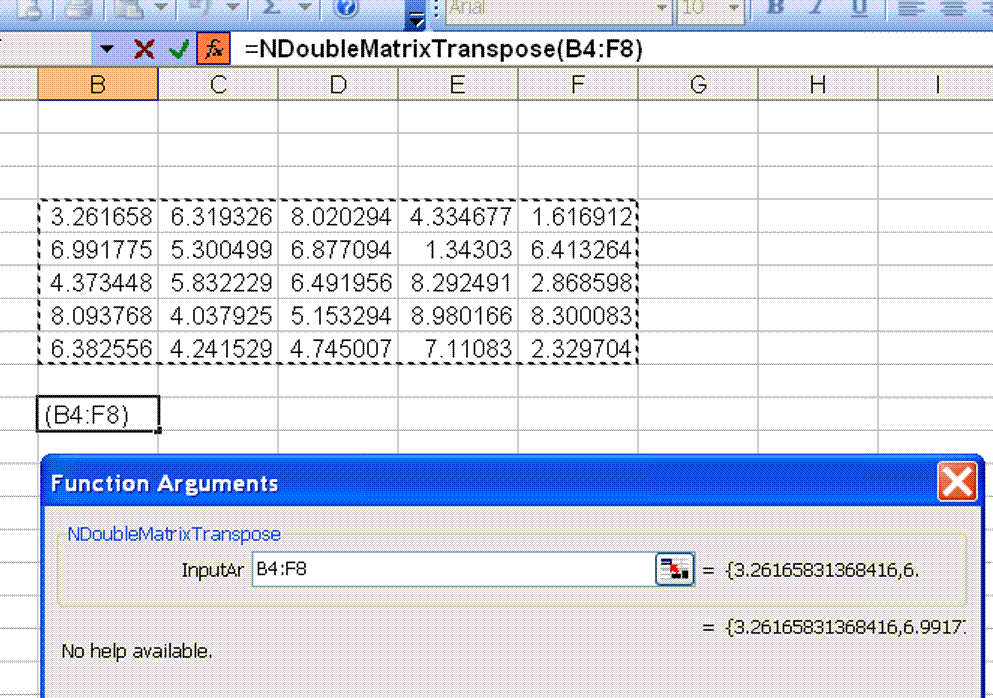

We can now send our library a range of data cells to be acted on and display the result. In the following screen shot I show setting up a 5 by 5 range with values to be transposed.

We can now select an available empty cell to insert our transpose computation. The following screenshot shows selecting the input range for calling our NMath transpose function.

As in our previous blog, the returned result is stored in a single cell and only one value is displayed. As a quick review to display the full result, first paint (select) the area for the data to be displayed with the function call in the upper left hand corner, then press the F2 key, next press Ctrl-Shift (hold), followed by the Enter key – this will build the array formula to populate the selected area with the result. Your result should look like the following screen.

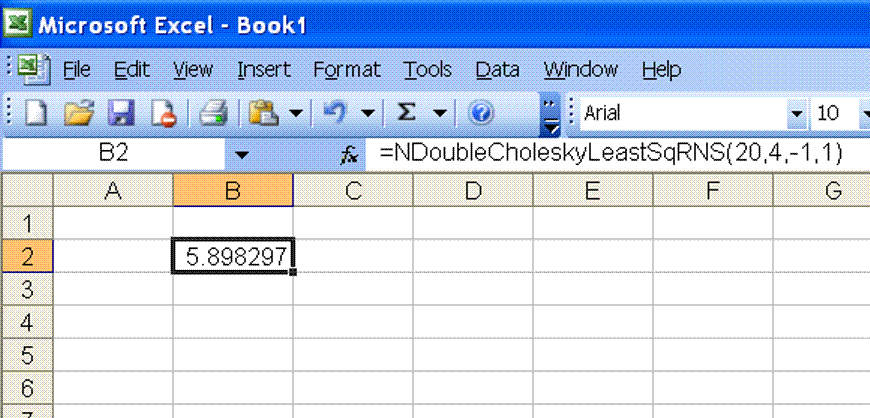

As a further example of what is possible, we can tackle an least squares example from the NMath documentation. The problem is to calculate the residual norm square using the Cholesky method, something that would be awkward to do natively in Excel alone. In this example the inputs are the number of rows and columns of a DoubleMatrix uniformly filled with random numbers. To accomplish this we need to add the following code to our DNA text file.

using CenterSpace.NMath.Matrix;
  .
  .
public static object NDoubleCholeskyLeastSqRNS(int rsize, int csize, int RandLBx, int RandUBx)
{
	RandGenUniform randomGenUniform = new RandGenUniform(RandLBx,RandUBx);
	randomGenUniform.Reset(0x124);
	DoubleMatrix TempAr = new DoubleMatrix(rsize,csize,randomGenUniform);
	DoubleCholeskyLeastSq cholLsq = new DoubleCholeskyLeastSq(TempAr);
	if (cholLsq.IsGood)
	{
 		DoubleVector b = new DoubleVector(TempAr.Rows,randomGenUniform);
		DoubleVector x = cholLsq.Solve(b);
		return cholLsq.ResidualNormSqr(b);
	}
	else
		return "The random matrix doesn't have full rank";
}

Summary

Approaching the complex computations with Excel by performing the necessary computation by calling a C# library with data passed in from Excel, creates a robust approach to solving problems. The following screenshot shows how providing our function with the input parameters from the example produces the desired result.

If we tried to implement the solution line by line in Excel, we would be loosing the power of an object language like C# and powerful third-party .NET libraries, and increasing the generation of tedious Excel code without a strong development environment.

To wrap up, combining Excel, ExcelDNA, and the CenterSpace’s NMath libraries can be used to quickly generate solutions to complex problems without an extensive programming environment. In my next blog, I plan to solve a curve fitting example with this approach and using more of Excel features to display the results.

Mike Magee

The post Using C# and ExcelDNA to call .NET Libraries appeared first on CenterSpace.

Harking back to the old rule of development projects of  “two out of three”, when the three metrics are fast, cheap, and quality.  On any time limited project you only can plan to achieve two metrics, never all three. Initially I like to dive in and start with fast and cheap and work my way towards quality as necessary.  So, we’ll start with the quick and dirty approach to calling external libraries from Excel.

Project Setup

You must have a version of .NET Framework of 2.0 or greater.  The latest .NET version is free and easily downloaded from Microsoft.

You’ll also need:

• Excel 97 or later.
• External library assemblies that you need to access from Excel. In our case we will use Centerspace’s NMath.dll and NMathStats.dll.
• A freeware product called ExcelDNA written by Govert van Drimmelen that can be downloaded at Excel-DNA .

The first order of business is to unpack the downloaded file, ExcelDNA.zip, into a working directory.  For our example, we will use CenterSpaceExcel as our directory name. After unpacking you should have two folders Distribution and Source in our CenterSpaceExcel directory.  Inside the Distribution folder locate the file ExcelDNA.xll and rename it to NMathExcel.xll.

We now need to locate in the same directory the file ExcelDna.dna and rename it to NMathExcel.dna.  Then using notepad, or your favorite code editor, and open the file NMathExcel.dna.

You should see the following code:

 _
	    	Function NPower(x as double, y As double) As double
			NPower = NMath.NMathFunctions.PowFunction(x, y)
		End Function

		 _
		Function NRand() As double
			dim rand As New NMath.RandGenMTwist
			NRand = rand.Next53BitRes()
		End Function

		 _
		Function NBinomDist(NSuccess As Int32, NTrials As Int32, Prob As double, Cumul As Boolean) As double
			dim nbin As New Stats.BinomialDistribution
			nbin.N = NTrials
			nbin.P = Prob
			IF Cumul
				NBinomDist = nbin.CDF(NSuccess)
			Else
				NBinomDist = nbin.PDF(NSuccess)
			End If
		End Function

		Function NDoubleMatrixRand(rsize As integer, csize As integer, RandLBx As integer, RandUBy As integer) As Object(,)
			dim rng As New NMath.RandGenUniform(RandLBx,RandUBy)
			Rng.Reset(&H124)
			dim TempA As New NMath.DoubleMatrix(rsize, csize, Rng)
			NDoubleMatrixRand = NCopyArray(TempA, rsize, csize)

		End Function

		Function NCopyArray(IMatrix As Object, rsize As integer, csize As integer) As Object(,)
			dim i As Integer
			dim j As Integer
			dim OArray(rsize, csize) As Object
			for i = 0 to rsize - 1
			   for j = 0 to csize - 1
				OArray(i,j) = IMatrix(i,j)
			   next j
			next i
			NCopyArray = OArray
		End Function

	End Module
]]>

We now have created the VB code to call our CenterSpace Math and Statistics libraries with the following five functions.

1. The first function shows a simple math library call to the Power function which takes a number x and raises it to the y power and returns the value.
2. The second function shows a call to obtain a fast random number from the math library.  Since we want a new number each time the spreadsheet is re-calculated we have made the function volatile.
3. The third function call shows how to set values that need to be accessed by a function in our .NET assemble; in this case, the Binomial Distribution.
4. The fourth function demonstrates the creation of a DoubleMatrix that is the filled with random uniformly distributed numbers.
5. The fifth function is a helper sub-routine to transfer data across the com interface.

Test our setup in Excel

Open Excel and move your cursor the Tools menu item.  Usually towards the bottom of the drop down menu you will find the selection Add-Ins.  After selecting Add-Ins, you see the pop-up window with the option to select Microsoft supplied Add-ins.  Choose the Browse option and go to the working directory we created at the beginning.  In our case, this will be the CenterSpaceExcel directory.  Next select the Distribution folder and you should see the renamed file: NMathExcel.xll.  Select it and you should now see the following screen.

Make sure NMathExcel is checked and click OK. If you get an error and this point it is probably due to a typo in the DNA file, otherwise you will get the expected new sheet ready for entry.

Select an empty cell and then select from the menu bar Insert then from the pulldown Function.  You should see the following pop-up.

At the bottom of the category pull down you should see our NMathExcel Functions;  Select it and you should have these options.:

If we choose NPower, we will get the next screen,

I arbitrarily typed the value of 3.2 for x and 3.327 for y.  You can see the result of 47.9329301 before selecting OK.

Select OK and Excel will insert the value into the cell.  Select another blank cell and this time choose our NRand() function.  You will notice there is no opportunity to enter values and finish by selecting OK.  At this point you should see a number between 0 and 1 in the cell.  Each time you press F9 (sheet recalc) a new random number will appear.  If we had not made this function volatile the number would not change unless you edit the cell.

To test our Binomial Distribution function, again we will select a new cell and use the insert function option to insert the NBinomDist function with the following values.

At this point we have made successful calls into both of CenterSpace’s NMath and NMath Stats .NET math libraries.

In our fourth example, we will see how Excel handles matrices and look at issues passing array arguments across the COM interface.  Excel 2003 was limited to a maximum of 60,000 cells in an array, but Excel 2007 was expanded to handle 2 million.  Excel has some quirky ways of displaying matrices, and I’ll cover the in’s and out’s of these quirks.

We have written the basic code to set up a function called NDoubleMatrixRand for the purpose of creating a matrix with supplied dimensions and filled with uniform Random numbers over a specified distribution.  We will select another blank cell and again go to insert function and this time choose NDoubleMatrixRand.  Suppose we want to create a 6×6 matrix filled with random numbers between -2 and 2.  Our input will look like the following screen.

Notice the equal sign in the middle right of the above screen is equal to {-0.994818527251482,-0.08

Values inclosed in curly brackets that are separated by commas indicates that an matrix was actually created, but you can see the Formula result is only displaying a partial value due to display size. At this point when you select OK, you will have a cell with a single value.  Here is where the fun begins.  Start at the cell and drag a 6×6 range as shown in the following screen.

Now get your fingers limbered. Here is where it gets a bit obscure – do exactly as follows.

• Press the F2 key.  (pressing F2 may be  optional but is recommended by Excel as the cell leaves the edit mode)
• Press and hold the Ctrl key followed by
• pressing and holding the Shift key followed by
• pressing the Enter key

and presto chango!  You should see a screen like this.

Notice that your cell’s formula is now enclosed in { }, indicating to Excel that the contained formula is an array function.  This is the only way to get matrices displayed.  Also, if you try to edit this cell you will get an error that changes are not allowed.  If  you want to change the dimensions simply reference the values from another cell when you create the function.

The fifth function NCopyArray copies the library matrix across the COM bridge into an Excel array object.  As I stated in the beginning this would be a quick and dirty approach and would leave room for improvement.

Summary

In my next post, I will provide the above code in C# and add more function calls with some matrices with hopefully an improved approach to NCopyArray.  Future posts will include creating a packaged XLL and a more complex example such as curve fitting.

Since time is our most precious asset, being able to quickly access complex math functions with a general purpose tool like Excel should save time and money!

At CenterSpace, we are interested if this blog is helpful and if there is a need for more examples of how our libraries can be accessed by Excel.  Let us know what areas are of interest to you.

Mike  Magee

Thanks and Resources
Also, a special thanks to Govert van Drimmelen for writing a wonderful tool such as ExcelDNA.

The post Calling External .NET Libraries from Excel appeared first on CenterSpace.

The post SuperComputing 2010 appeared first on CenterSpace.

NMath Student Editions are fully functional versions of the NMath libraries that expire in one year.  Perfect for the student taking .NET programming courses focusing on math, statistics or engineering.

“More and more students are requesting our libraries to help them with their programming projects.” says CEO Trevor Misfeldt  “This new edition allows them to use the NMath libraries for a longer period of time at a very low cost.”

This year you can go back to school with NMath!

Student versions are licensed for non-commerical use only, proof of student status is required after purchase and before delivery.

The post Go Back to School with NMath appeared first on CenterSpace.

Any one who would like to meet with them personally during their time in the Bay Area can contact Amy to schedule an appointment.  541.896.1301

The post Join CenterSpace at the Intel Developer Forum in San Francisco! appeared first on CenterSpace.

” We were busting at the seams so it was time for a move.” said CenterSpace CEO Trevor Misfeldt  “Our team is growing so we can expand the functionality of the NMath software and provide more consulting services to our customers.”

Our new location is located on the third floor of the historic Crees Building in downtown Corvallis Oregon.

CenterSpace Software

230 SW 3rd Street, Suite #311

Corvallis OR, 97333

+1.541.896.1301

At the time of its construction in 1926, the Crees Building was the largest commercial building to ever be built in downtown Corvallis and it has played a major role in the commerce of the area.   Visitors can take a ride to our offices on the third floor in the oldest working (we hope!) elevator in Corvallis.

“With almost twice the square footage of our former location, we will not only be able to handle the growth of our staff but also provide a unique environment for our new series of quarterly training classes starting in August 2010.” says Misfeldt.

About CenterSpace Software
CenterSpace Software is a leading provider of enterprise class numerical component libraries for the .NET platform. Developers worldwide use CenterSpace products to develop .NET financial, engineering, and scientific applications. CenterSpace Software has offices in Corvallis, OR, and can be found on the Internet at https://www.centerspace.net.

The post We’ve Moved to a New Larger Location appeared first on CenterSpace.
